产品参数电气特性 Electrical Characteristics：
| 项目 | 参数值 |
| 电阻 Resistance (Vcc-Gnd) | 5KΩ ±30% |
| 额定功率 Rated Power | 5mW |
| 额定电压 Rated Voltage | 5V DC |
| 杂音 Noise | Less than 300m Vp-p |
| 中心位分压比Center Position Voltage | 50%±7% |
| 复位精度 Returning accuracy rate | ≤5.0% (Initial) |
| ≤6.3% (After Reliability test) |

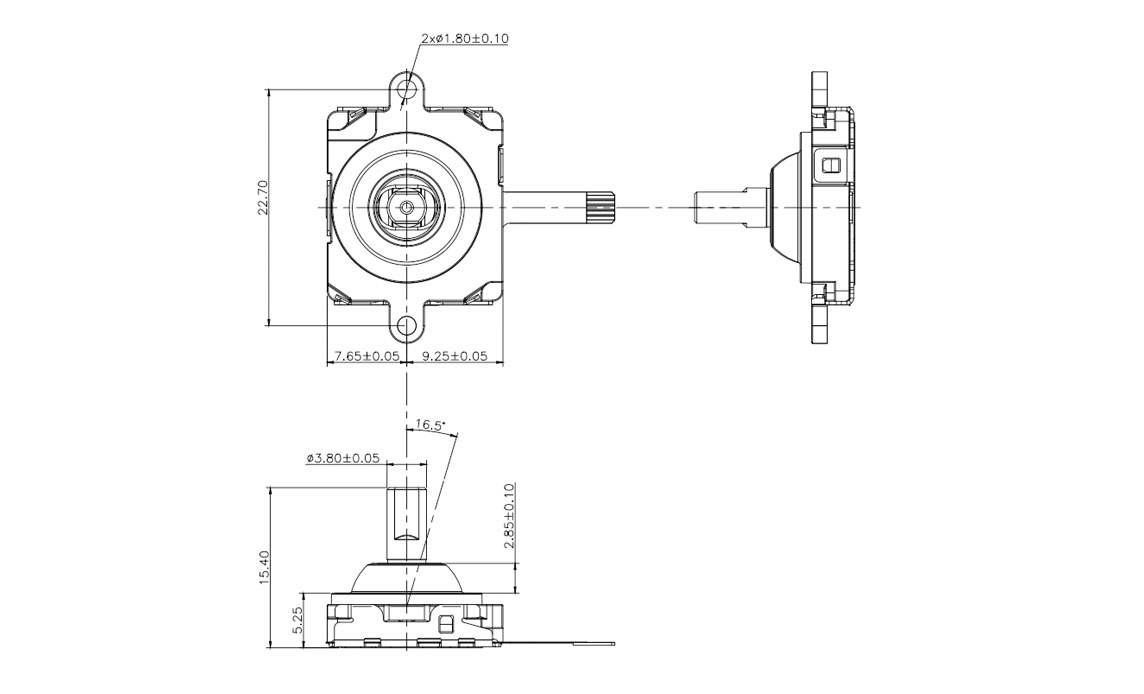

机械特性 Mechanical Characteristics：
| 项目 | 参数值 |
| 摇杆操作角度 Operation angle of Lever | Single side: 16.5°Typ. |
| 摇杆操作力 Operating force of Lever | 11.5±6 mN?m |
| 中心按压力(开关) Center Switch force | 10.0 ± 2.0 N |
| 中心按压行程(开关) Center Switch Travel | 0.4 +0.5/-0.3 mm |
| 摇杆复归精度 Accuracy of Reset Position of Lever | ±3? |
耐久性能 Endurance Characteristics：
| 项目 | 参数值 |
| 旋转寿命 Rotational Life | 1,200,000 cycles以上 |
| 开关寿命 Durability of switch | 800,000 cycles以上 |
